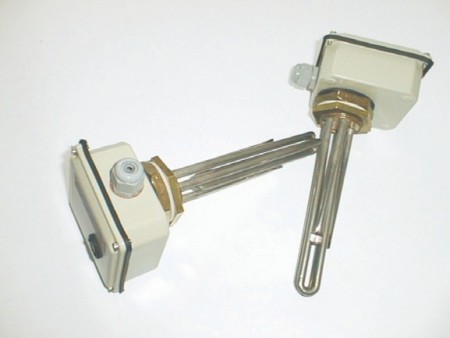

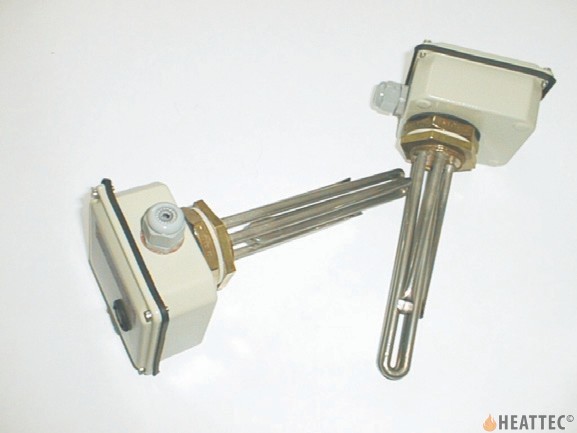

Thermostatic Immersion Heater Assembly

Thermostatic Immersion Heating Element

Thermostatic Immersion Heater Assembly

SKU: ECU1
  • For knife sterilizers or other instruments
  • BSP threaded plug of stamped brass
  • Sheath with manual reset safety thermostat of 105 ± 4 ºC. Differential 20 ± 10 ºC.
  • Sheath with automatic reset control thermostat of 93 ± 3 ºC. Differential 6 ± 2 ºC.
  • L (LIR) 190mm
  • 1000 Watts
  • Tube material Ø8 AISI 316L
  • Standard voltage ~230V

View leaflet

Availability: Delivery time on request

€209.00
€209.00

Benefits

  • Best prices
  • Fast delivery
  • Advice from specialists
Credit card Visa
Credit card Mastercard
iDeal
Bank Transfer
Product Description

Details

General characteristics

  • Tubular element of stainless steel AISI 316L of Ø8 mm
  • BSP threaded plug of stamped brass
  • Steel painted connection box with degree protection against moisture IP66.
  • Stuffing box • Watertightness gasket
  • Welded with silver alloy for stainless steel tube
  • Standard voltage ~230 V
  • Sheath with manual reset safety thermostat of 105 ± 4 ºC. Differential 20 ± 10 ºC.
  • Sheath with automatic reset control thermostat of 93 ± 3 ºC. Differential 6 ± 2 ºC.
  • On request, special heating elements can be made according to your specifications:
    - Material tube: AISI 316L, Incoloy®-800, Incoloy®-825 and Titanium
    - Stainless steel or titanium BSP threaded plugs.

Note: The complete set of heating element, connection box, thermostats, lock nut and klingerit joint is included in the price.
Usual applications: Especially appropriate for knife sterilizers in refrigerated slaughterhouses.

It may also be used for other applications such as heating slightly salted waters, or with low chlorine content, neutral or marginally basic pH, high oxygen content, etc., for which the most suitable sheath material for the element is 316L stainless steel, or when airtightness is required in the connection box, or double safety in the temperature control. In case of doubt, feel free to contact us.

Additional Information

Additional Information

Name Thermostatic Immersion Heater Assembly
Estimated delivery 2-3 weeks
Manufacturer Electricfor
