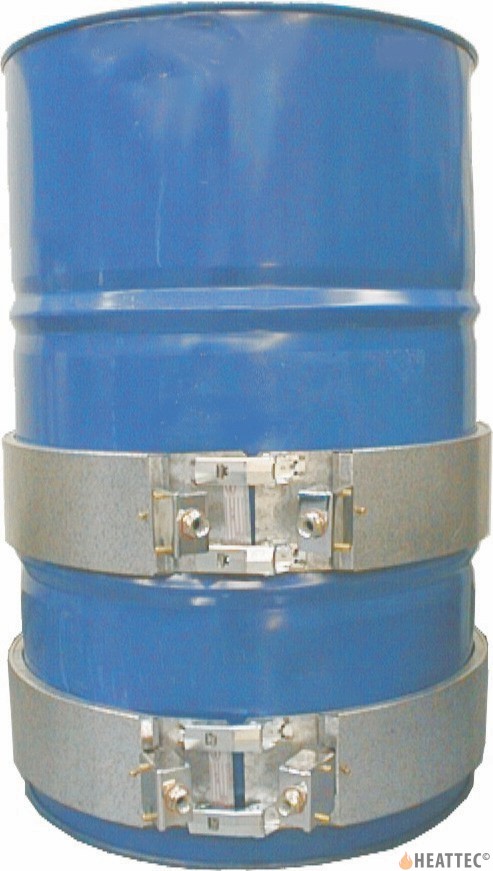

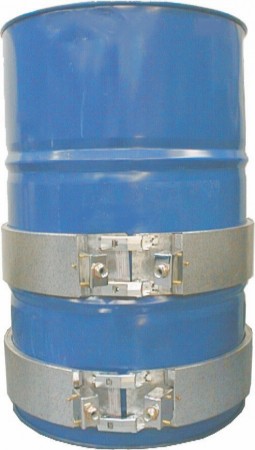

Metal Heating Clamp for Drums (AF Range)

Metallic Heating Clamp for Drums

Metal Heating Clamp for Drums (AF Range)

SKU: AF001
  • AF Range
  • Very robust construction based on elements with stainless steel AISI 321 or 304L tube covered with a galvanised steel layer.
  • Standard model for drums 200 Lts (Ø580 mm).
  • Tubular elements with stainless steel AISI 321 or AISI 304L tube.
  • The outside of the clamp is insulated by a mineral sheet protected by a galvanised layer.
  • Closing with double buckle.
  • Power: 1,3 KW (2x650 W)
  • Standard voltage ~230 V
  • Other dimensions and voltages are available on request

View leaflet

Availability: Delivery time on request

€439.00

Benefits

  • Best prices
  • Fast delivery
  • Advice from specialists
Credit card Visa
Credit card Mastercard
iDeal
Bank Transfer
Product Description

Details

“AF” RANGE

  • Very robust construction based on elements with stainless steel AISI 321 or 304L tube covered with a galvanised steel layer.

General

  • Standard model for drums 200 Lts (Ø580 mm).
  • Tubular elements with stainless steel AISI 321 or AISI 304L tube.
  • The outside of the clamp is insulated by a mineral sheet protected by a galvanised layer.
  • Closing with double buckle. • Power: 1,3 KW (2x650 W) • Standard voltage ~230 V
  • Other dimensions and voltages are available on request

Method of use

  • Place the clamp as low as possible on the drum, making sure that the contact with its surface is good. (Do not place on the ridged rigidifiers).
  • Check that the level of the liquid is higher than to the position of the clamp. If you foresee variations in the liquid level within the drum, see our magnetic level switches and our level controllers for conducting liquids, solids and granulates. This eventuality is of special importance when the drums are made of plastics or derivates, given the fact that using the clamp with an inadequate level in the drum could lead to its premature deterioratio.
  • Check the highest temperature to which you can raise the liquid, and if necessary, place a thermostat within the drum and make the relevant connections.
  • Do not cover the drum hermetically. The heating of liquid with the drum closed could cause a rise of the pressure inside it. If it is not possible, we suggest that you place a pressostat that will limit the pressure in the drum.
Additional Information

Additional Information

Name Metal Heating Clamp for Drums (AF Range)
Estimated delivery 2-3 weeks
Connection voltage 230V
Manufacturer Electricfor
