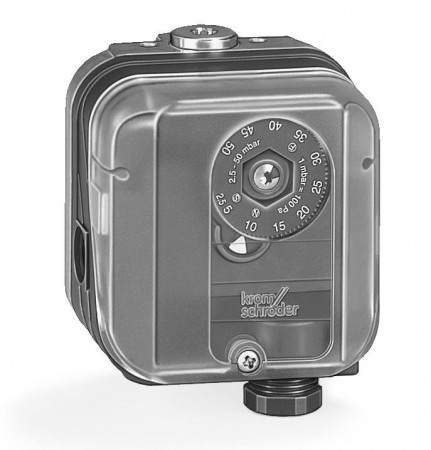

Kromschröder Pressure switch DG 150U-3
Product Description
Details
The Kromschröder DG 150U-3 is a universal diaphragm pressure switch for industrial combustion systems. It monitors the preset pressure and triggers a microswitch when the switching point is reached.
Features and specifications:
- Application: Suitable for natural gas, LPG, air, flue gas, and biogas.
- Functionality: Monitors overpressure, negative pressure (vacuum), and differential pressure.
- Adjustment: Switching range of 30 to 150 mbar, manual switching point adjustment via an integrated handwheel.
- Design: Silicone-free diaphragm, approved as a pressure switch of special design.
- Certifications: EC type-tested and certified according to the Gas Appliances Regulation, Low Voltage Directive, and Pressure Equipment Directive in conjunction with EN 1854.
Available models and adjustment ranges:
| Model | Switching Range |
|---|---|
| Kromschröder DG 6U-3 | 0.4 to 6 mbar |
| Kromschröder DG 10U-3 | 1 to 10 mbar |
| Kromschröder DG 50U-3 | 2.5 to 50 mbar |
| Kromschröder DG 150U-3 | 30 to 150 mbar |
| Kromschröder DG 500U-3 | 100 to 500 mbar |
Additional Information
Additional Information
| Name | Kromschröder Pressure switch DG 150U-3 |
|---|---|
| GTIN / EAN | 84447500 |
| Estimated delivery | 1 week |
| Manufacturer | Kromschröder |
| Country of Manufacture | Germany |
