Kromschröder Burner Control Unit, BCU 370WI1FEU0D1

Kromschröder Burner Control Unit, BCU 370WFEU0D1

Kromschröder Burner Control Unit, BCU 370WI1FEU0D1

SKU: 88600015

Kromschröder Burner Control Unit, BCU370 WFEU0D1

View leaflet

Availability: Delivery time on request



  • Best prices
  • Fast delivery
  • Advice from specialists
Credit card Visa
Credit card Mastercard
Bank Transfer
Product Description

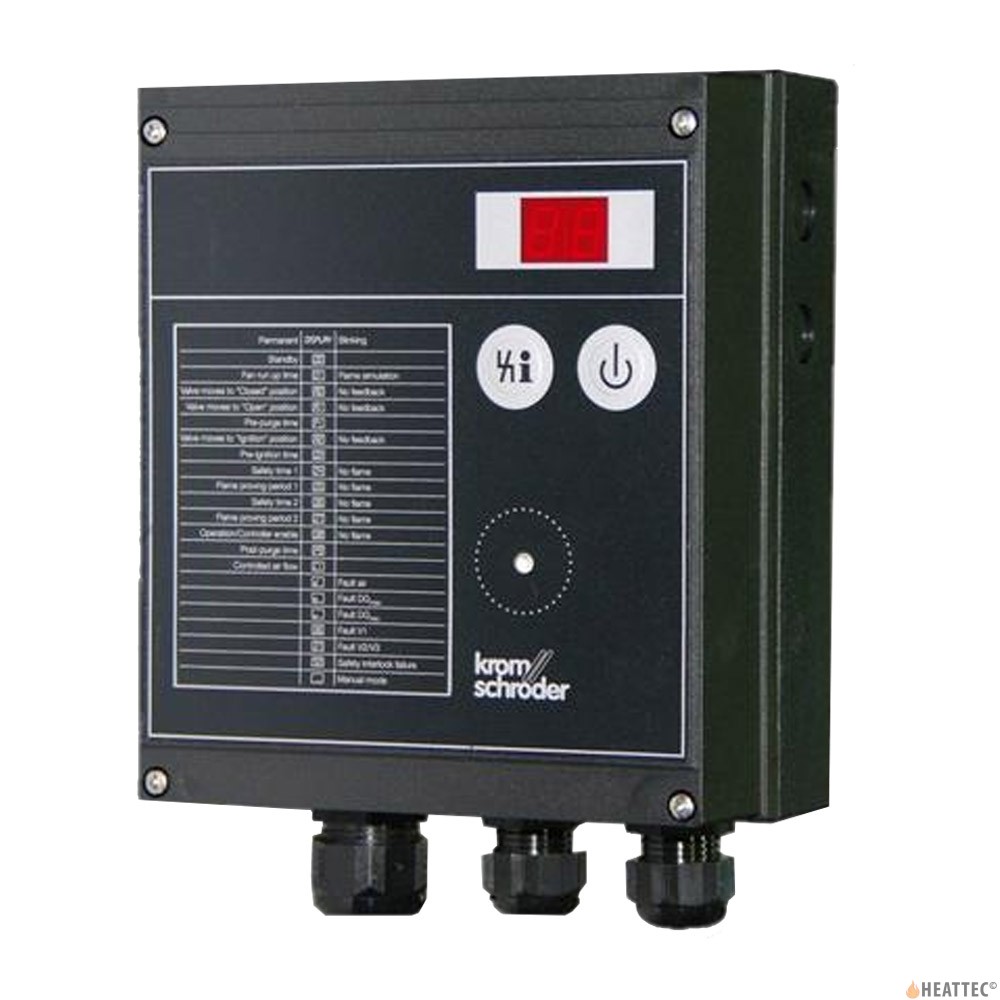

Burner Control Unit BCU 370WFEU0D1

The BCU (burner control unit) 370 controls, ignites, and monitors industrial forced air burners of unlimited capacity in intermittent or continuous operatio. It can be used for directly ignited forced air burners or forced air burners ignited with a pilot burner. The burner control unit activates the blower and sets the connected solenoid gas valves to the pre-purging and ignition position. After the pre-purge and burner start, an enable signal is sent to an external controller that positions the butterfly valve according to the output demand. Post-purge occurs after the end of the burner operatio. The BCU 370 monitors the gas and air pressure, an integrated tightness control function (optional) checks the valves with an external gas pressure switch.

The quick-start option allows standard-compliant start-up of a forced air burner without pre-purge after normal shutdown. This means unnecessary air won’t get into the combustion chamber. The heat output is available as quickly as possible after a temperature demand.

The program status, the unit parameters, and the level of the flame signal can be read directly from the unit. An integrated manual mode allows you to start a burner and set the butterfly valve position independently of the central control system. The BCSoft operator-control and setting software provides a powerful tool for start-up and servicing.

To reduce the installation and wiring costs, Kromschroder offers an optional Profibus-DP interface to transfer the activation signals and feedback


  • Modulation of forced air gas burners of unlimited capacity in intermittent or continuous operatio
  • Control of fan and solenoid valves
  • Simple system set-up with optional tightness control and integrated ignition unit
  • Easy start-up and maintenance in manual operating mode
  • Enhanced flexibility and simplified logistics with programmable functions
  • Easy servicing with user-friendly operating, warning, and fault messages
  • Available with optional integral field bus interface for simple wiring
  • EC type-tested and certified, CSA and FM approved
Additional Information

Additional Information

Name Kromschröder Burner Control Unit, BCU 370WI1FEU0D1
GTIN / EAN 88600015
Estimated delivery 1 week
Manufacturer Kromschröder
Country of Manufacture Germany
