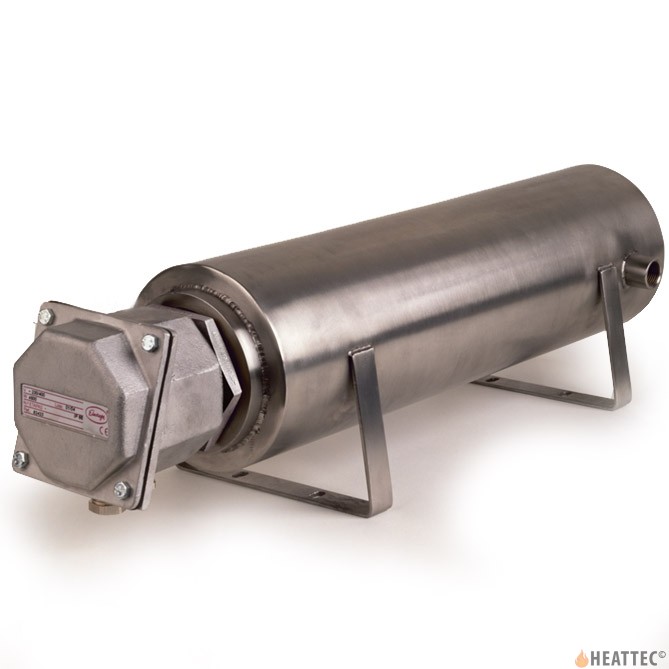

In-line heater (GCP-TR-CN)

In-line heater (GCP-TR-CN) - Electricfor

In-line heater (GCP-TR-CN)

SKU: HTC-GCP-TR-CN
  • Standardised GCP-TR-CN models
  • Range for heating water
  • With nickel-plated copper tube heating elements.
  • Design temperature 90 ºC

View leaflet

Availability: Delivery time on request

€1,144.00
€1,144.00

Benefits

  • Best prices
  • Fast delivery
  • Advice from specialists
Credit card Visa
Credit card Mastercard
iDeal
Bank Transfer
Product Description

Details

General characteristics

  • Tubular elements in AISI 316L stainless steel, AISI 321 stainless steel or nickelplated copper.
  • Recipient of 3" in diameter in St37 steel, with an outer layer of anticorrosive paint
  • Circuit input/output connection hoses of 1" female gas thread.
  • Threaded heads of stamped brass or AISI 304 stainless steel.
  • All models include a sheath of the same material as the heating element pipe,
  • and a bulb thermostat with automatic reset, regulating scales 0/90°C; 30/85°C or 36/125°C according to models.
  • Adjustable aluminium connection box, with IP66 protection according to standard EN-60529.
  • It is supplied with all accessories for connection, attachment and connection of the thermostat.
  • All models include a 1/2" female gas thread hose for attaching a temperature probe (Not included)
  • GCP-TR in line heaters are designed for working at a maximum design pressure of 6 bar and maximum design temperature indicated according to models.
  • Optionally, together with the GCP-TR heater unit we can provide the switchboard with all the components and protections needed for its connection:
    heat-controllers, buttons, contactors, differential, magneto-thermal, etc.
  • Standardised current 3~230 V Δ, 3~400 V
  • To order, made to measure heating elements can be manufactured according to your specifications:
    - Tubular elements in: AISI 316L, Incoloy®-800 e Incoloy®-825 and Titanium
    - Stainless steel or Titanium heads.
  • Units according to Para. 3 Art. 3 of the Pressurised Units Directive 97/23 CE.
Additional Information

Additional Information

Name In-line heater (GCP-TR-CN)
Estimated delivery 3-4 weeks
Manufacturer Electricfor
