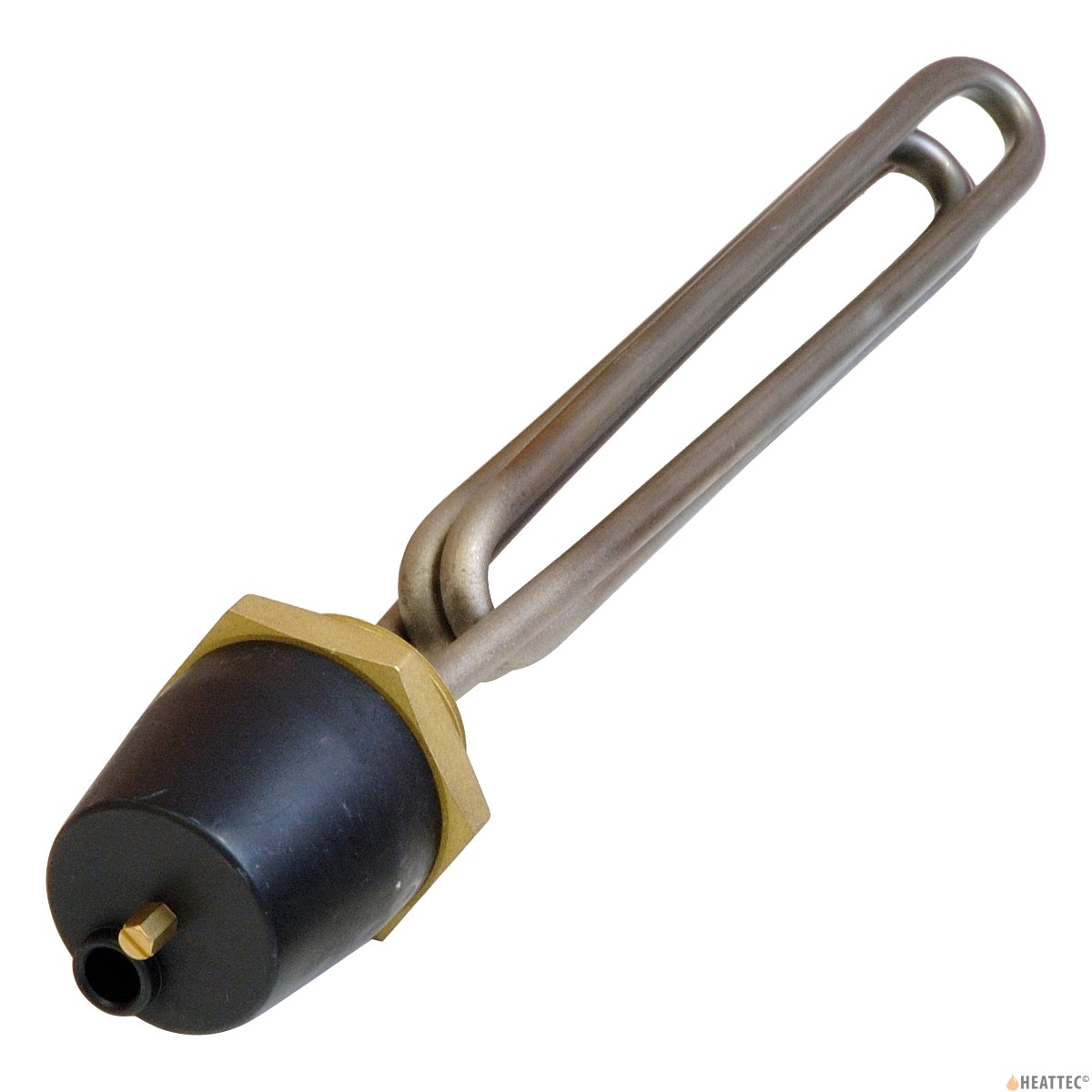

Immersion Heater Triple Loop Triple-U
Product Description
Details
- Tubular element of nickel-plated copper of Ø8 mm
- BSP threaded plug of stamped brass
- Polyester with fiberglass or bichromated zinc-plated steel protection hood, with degree protection against moisture IP-40.
- Optionally, all the models with BSP thread of 1 1/2”, 2” and 2 1/2” can be supplied with aluminum connection box IP66.
- Welded with silver alloy for stainless steel tube and with copper alloy for copper tube.
- Standard voltage 3~230 V Δ, 3~400 V
- By request, special heating elements can be made according to your specifications:
- Material tube: AISI 316L, Incoloy®-800, Incoloy®-825 and Titanium
- Stainless steel or titanium BSP threaded plugs.
Usual applications
- Steam boilers
- Water baths
- Warming of diesel fuel
- Water heaters
- Oil chambers
- Distillation
- Cleaning
- Dyeing
- Liquid convection heating ra diators
- Towel dryers
- Degreasing
- Endothermal or exothermal reactions requiring it
- Heating by circulation of liquids
- Fish farms
- Boiling vats
- Cooking vats
- Chemical industries
- Electromedicine...
Specifications
| Type | L (mm) | BSP plug | Power (W) | W/cm² |
Tube material | Weight (kg) |
| ET401C | 355 | 2 1/2" | 9000 | 6,7 | Cu | 2,1 |
| ET402C | 465 | 2 1/2" | 12000 | 6,6 | Cu | 2,6 |
| ET403C | 570 | 2 1/2" | 15000 | 6,6 | Cu | 3,0 |
| ET404C | 680 | 2 1/2" | 18000 | 6,5 | Cu | 3,6 |
Additional Information
Additional Information
| Name | Immersion Heater Triple Loop Triple-U |
|---|---|
| Estimated delivery | 1-2 weeks |
| Manufacturer | Electricfor |
| Country of Manufacture | Spain |
