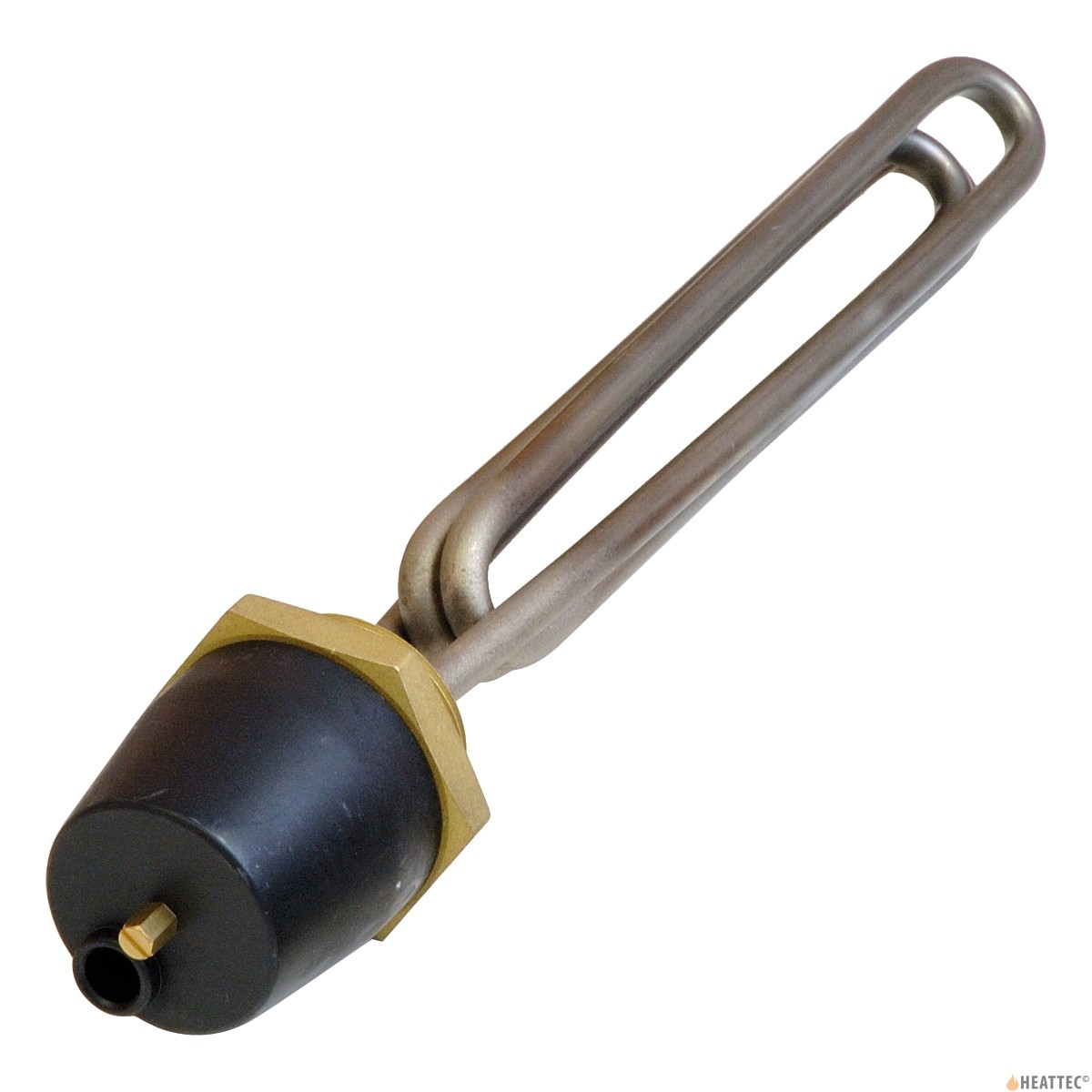

Immersion Heater Double Loop Triple-U

Immersion Heater Double Loop Triple-U

Immersion Heater Double Loop Triple-U

SKU: HTC-ED

The stainless steel tube and polyester screw cap ED electrical resistors range comes with brass coupling plug is used to heat all kinds of water, of whatever source and treatment.

View leaflet

Availability: Delivery time on request

€136.00
€136.00

Benefits

  • Best prices
  • Fast delivery
  • Advice from specialists
Credit card Visa
Credit card Mastercard
iDeal
Bank Transfer
Product Description

Details

  • Tubular element of nickel-plated copper or stainless steel AISI 321 of Ø8mm
  • BSP threaded plug of stamped brass
  • Polyester with fiberglass or bichromated zinc-plated steel protection hood, with degree protection against moisture IP-40.
  • Optionally, all the models with BSP thread of 1 1/2”, 2” and 2 1/2” can be supplied with aluminum connection box IP66.
  • Welded with silver alloy for stainless steel tube and with copper alloy for copper tube.
  • Standardspannung 3~230 V Δ, 3~400 V
  • By request, special heating elements can be made according to your specifications:
    - Material tube: AISI 316L, Incoloy®-800, Incoloy®-825 and Titanium
    - Stainless steel or titanium BSP threaded plugs.

Usual applications

  • Steam boilers
  • Water baths
  • Warming of diesel fuel
  • Water heaters
  • Oil chambers
  • Distillation
  • Cleaning
  • Dyeing
  • Liquid convection heating radiators
  • Towel dryers
  • Degreasing
  • Endothermal or exothermal reactions requiring it
  • Heating by circulation of liquids
  • Fish farms
  • Boiling vats
  • Cooking vats
  • Chemical industries
  • Electromedicine

Specifications

Type L (mm) BSP plug Power (W) W/cm²
Tube material Weight (kg)
ED001 140 2″ 1800 7,1 SS 0,84
ED002C 140 2,1/2″ 1800 7,1 Cu 1,2
ED003 170 2″ 2400 7 SS 0,92
ED003C 170 2″ 2400 7 Cu 0,92
ED105 235 2″ 1200 2,2 SS 1,1
ED005 235 2″ 3600 6,7 SS 1,1
ED005C 235 2″ 3600 6,7 Cu 1,1
ED107 345 2″ 2700 3,1 SS 1,4
ED007 345 2″ 5400 6,3 SS 1,4
ED007C 345 2″ 5400 6,3 Cu 1,4
ED008 345 2,1/2″ 5400 6,3 SS 1,6
ED008C 345 2,1/2″ 5400 6,3 Cu 1,6
ED009 445 2″ 7200 6,2 SS 1,6
ED009C 445 2″ 7200 6,2 Cu 1,6
ED109 445 2,1/2″ 7200 6,2 SS 1,8
ED110 505 2″ 3000 2,2 SS 1,8
ED111 505 2,1/2″ 3000 2,2 SS 1,9
ED210 505 2″ 4500 3,4 SS 1,8
ED211 505 2,1/2″ 4500 3,4 SS 1,9
ED010 505 2″ 9000 6,7 SS 1,8
ED010C 505 2″ 9000 6,7 Cu 1,8
ED011 505 2,1/2″ 9000 6,7 SS 1,9
ED011C 505 2,1/2″ 9000 6,7 Cu 1,9
ED012C 680 2″ 12000 6,6 Cu 2,3
ED013C 680 2,1/2″ 12000 6,6 Cu 2,5
ED014C 835 2″ 15000 6,6 Cu 2,9
ED015C 835 2,1/2″ 15000 6,6 Cu 3,1
ED016C 990 2″ 18000 6,5 Cu 3,4
ED017C 990 2,1/2″ 18000 6,5 Cu 3,6
Additional Information

Additional Information

Estimated delivery 1-2 weeks
Manufacturer Electricfor
Country of Manufacture Spain
