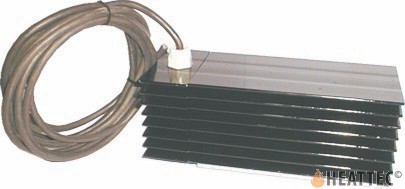

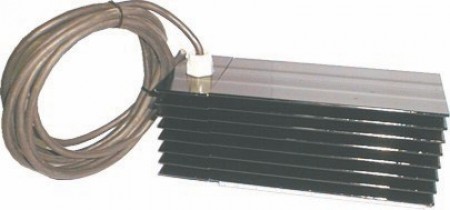

Electric Heater for Hydraulic Oil CMG

Electric Heater for Hydraulic Oil CMG

Electric Heater for Hydraulic Oil CMG

SKU: CNG020
  • With very low density load for hydraulic oil groups
  • Degree protection against moisture IP66.
  • Profile in black aluminum.
  • Supports base in galvanized steel with two powerful magnets to fix the resistance to metallic deposits and at the same time to attract metallic particles in suspension.
  • Fixed temperature thermostat at 28 °C with differential of 11 °C.
  • Silicone hose cable of 3x0,75 mm² with PG9 for tank exit
  • PG9 for cable hose.
  • Watertight gaskets.
  • Optional: If you require, we can supply finished CMG heater with 3/8” pressure connection with metallic mesh of 1200 mm length

View leaflet

Availability: Delivery time on request

€656.15

Benefits

  • Best prices
  • Fast delivery
  • Advice from specialists
Credit card Visa
Credit card Mastercard
iDeal
Bank Transfer
Product Description

Details

The CMG heater is designed for maintening temperature in tanks of hydraulic oil or other materials in which a stable temperature of approximately 25 °C is needed (starting up of hydraulic groups, etc.). Thanks to the large surface of the aluminum radiator we obtain a really low density load of the heater, ensuring a maximum surface temperature of the element of 60 °C, even working dry. In this way we avoid risks of oil cracking, prolonging the element life. The heater incorporates two powerful magnets which, apart from being used to fix a position in the metallic tank, attract potential small magnetic particles in suspension that could damage the hydraulic groups.

General characteristics

  • Degree protection against moisture IP66.
  • Profile in black aluminum.
  • Supports base in galvanized steel with two powerful magnets to fix the resistance to metallic deposits and at the same time to attract metallic particles in suspension.
  • Fixed temperature thermostat at 28 °C with differential of 11 °C.
  • Silicone hose cable of 3x0,75 mm² with PG9 for tank exit
  • PG9 for cable hose.
  • Watertight gaskets.
  • Optional: If you require, we can supply finished CMG heater with 3/8” pressure connection with metallic mesh of 1200 mm length

Usual applications

  • Hydraulic oil baths
  • Positioners
  • Lifts
  • In general, all baths that need a stable calorific input to maintain a temperature of 25 °C.
Additional Information

Additional Information

Estimated delivery 2-3 weeks
Manufacturer Electricfor
