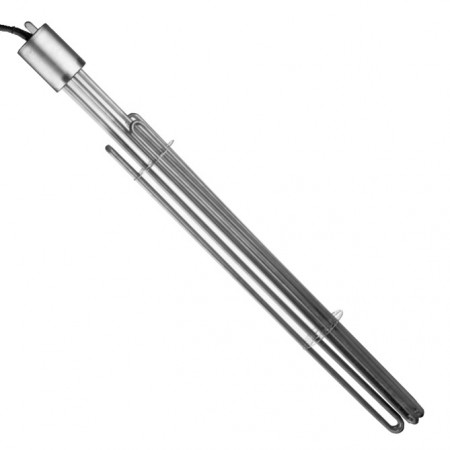

Immersion Heater (High Power) EPV-GP

Immersion Heaters (High Power) EPV-GP

Immersion Heater (High Power) EPV-GP

SKU: HTC-EPV-GP
  • For food industry
  • AISI 316L Ø10mm stainless steel pipe.
  • Connection box, separators and connection ring in AISI 316L stainless steel.
  • Unit surface finish: Electropolished.Watertight connections box, with IP-67 damp protection rating.
  • Cable connection lead of 4 wires (3-phases + earth) of 2.5mm2 section and 10,000 mm long.
  • Non-toxic blue outer covering of the cable lead suitable for food applications.
  • Grey polyamide PG16 stuffing box.
  • Class I electric element.

View leaflet

Availability: Delivery time on request

€880.00
€880.00

Benefits

  • Best prices
  • Fast delivery
  • Advice from specialists
Credit card Visa
Credit card Mastercard
iDeal
Bank Transfer
Product Description

Details

General characteristics

  • AISI 316L Ø10mm stainless steel pipe.
  • Connection box, separators and connection ring in AISI 316L stainless steel.
  • Unit surface finish: Electropolished.Watertight connections box, with IP-67 damp protection rating.
  • Cable connection lead of 4 wires (3-phases + earth) of 2.5mm2 section and 10,000 mm long.
  • Non-toxic blue outer covering of the cable lead suitable for food applications.
  • Grey polyamide PG16 stuffing box.
  • Class I electric element.

EPV

  • EPV immersion heaters have been designed for heating liquids and, in wine-making, to facilitate the process of grape juice fermentation.
  • Totally manufactured in AISI 316L stainless steel and completely watertight for their total immersion in fermentation tanks.
  • All materials used in their manufacture are suitable to be used in the food industry. To order, special models can be supplied for specific temperatures and uses.
  • The EPV range of heaters are shielded electric heating elements with power feed only at one end. Available in construction Class I (main insulation requiring earth plug) and in construction Class II (double insulation or reinforced insulation).
  • Heattec offers the possibility of personalising the element as far as size, power and suitable attachments for each manufacturer.
Additional Information

Additional Information

Name Immersion Heater (High Power) EPV-GP
Estimated delivery 1-2 weeks
Manufacturer Electricfor
