High density heating cartridge (CFOR Range)

Name: High density heating cartridge (CFOR Range)
Brand: Electricfor
SKU: CFOR10
Availability: InStock

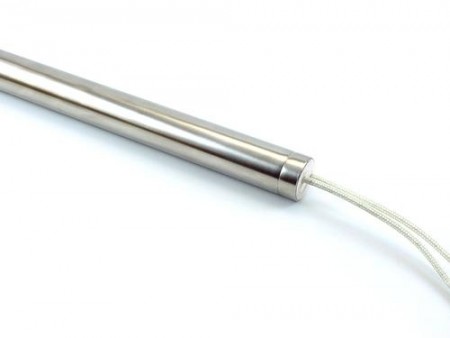

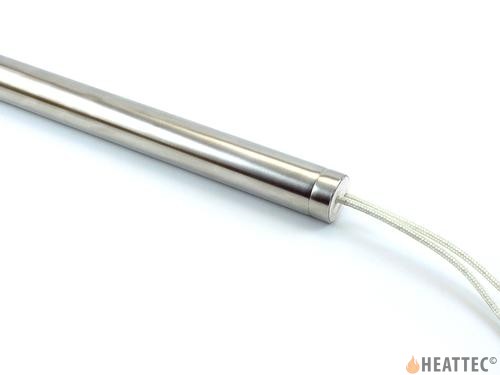

Cartridge Heater CFOR

Double click on above image to view full picture

More Views

SKU: CFOR10

Availability: Delivery time on request

€0.00

€0.00

Qty:

Stainless steel tube, AISI 321, ground and calibrated in a welded bottom, sealed to a pressure of 60 kg/cm²
Standard voltage: ~230 V
Braid nickel cables, covered with a siliconized fiberglass flexible, length: 250 mm
Material: 80-20 Nickel-Chrome wire, melting point: 1.400 ºC
Highly compacted electro-melted magnesium oxide
Cold zones: according to diameter, 6 to 12 mm on the connection side and 4 to 8 mm on the welded bottom side
Other dimensions on request

Name	High density heating cartridge (CFOR Range)
Estimated delivery	3-4 weeks
Manufacturer	Electricfor
