Geca gas valve slow opening fast closing

    • Please specify the product's option(s).

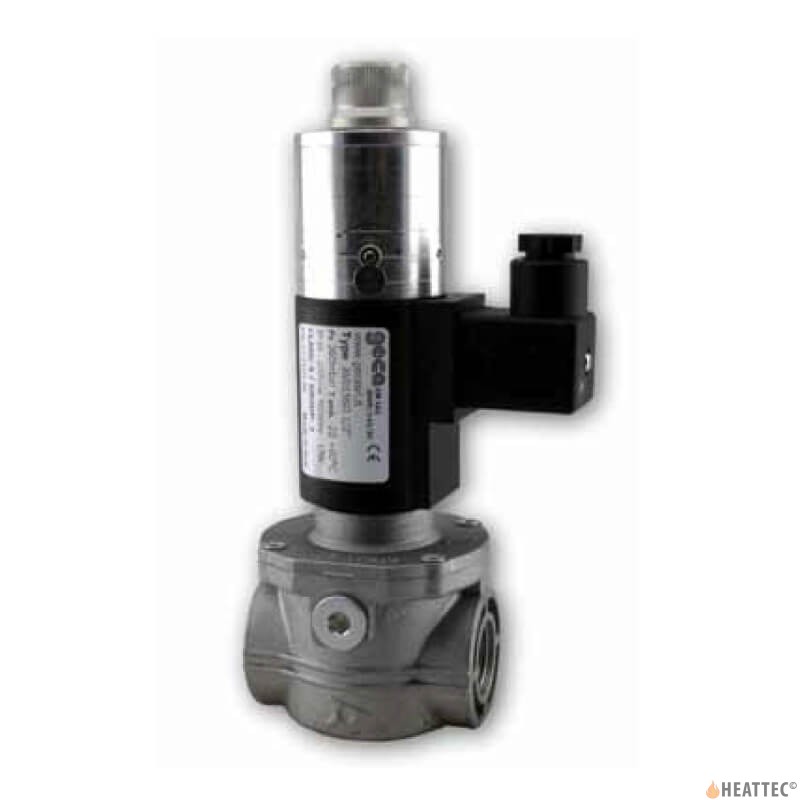

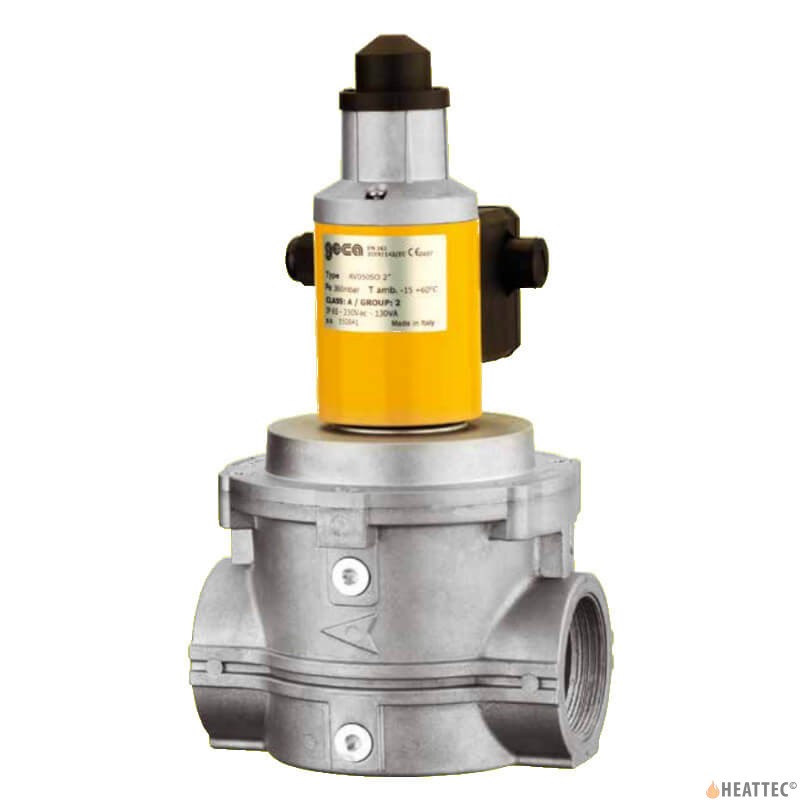

Geca gas valve slow opening fast closing
Gas valve slow opening fast closing 1/2" Gas valve slow opening fast closing 3/4" Gas valve slow opening fast closing 1" Gas valve slow opening fast closing 1 1/4" Gas valve slow opening fast closing 1 1/2" Gas valve slow opening fast closing 2"

Geca gas valve slow opening fast closing

SKU: HTC-AV-SO

Gas valve with slow opening and fast closing by Geca which can be for safety and control of gas for shut-off in gas feed pipes. Suitable for various gases, including natural gas, propane and LPG.

View leaflet

Availability: Delivery time on request

€137.21
€137.21

Benefits

  • Best prices
  • Fast delivery
  • Advice from specialists
Credit card Visa
Credit card Mastercard
iDeal
Bank Transfer
Product Description

Details

Gas solenoid valves are used for safety and control of gas for shut-off in gas feed pipes. Suitable for various gasses, including natural gas, propane and LPG. Gas solenoid valves are normally closed and open automatically when the coil is powered and close automatically when there is no tension.

Specifications:

  • Max. operating pressure (Pmax): 360 mbar
  • Inlet connection - outlet Thread gas ½” ¾” and 1” - ISO 228 DN25 - Sliding Aluminium flange PN10
  • Opening time: adjustable - 0,5 to 25 sec
  • Closing time: <1 second
  • Adjustable: Opening time / Rapid stroke / Flow regulation
  • Incorporated AISI 303 steel mesh filter on request
  • Supply voltage - 230V (-15%+10%) 50-60Hz
  • Power: 15 VA - Coils to class F, copper wire class H
  • Only use non-aggressive gases - Family 1, 2 and 3 and air
  • Test point: 2 connections - options 3 connections - screw ¼”
  • Working Temperature - 20 °C - 60 °C
  • Approval: EN161 / PED
  • Protection degree IP65

Materials:

  • Complete Body Die
  • Cast Aluminium Gd
  • AlSi12Cu
  • EN AB 46100
Additional Information

Additional Information

Name Geca gas valve slow opening fast closing
Manufacturer Geca - Tecnocontrol Srl
Max. Operating Pressure 360 mbar
Connection voltage 230V
Estimated delivery 1-2 weeks
Country of Manufacture Italy
