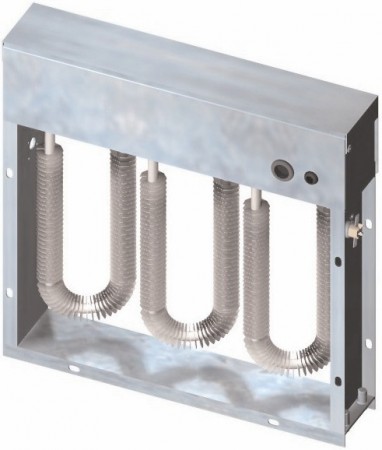

Electric Batteries with Spiral Fin Heating Elements (AHBAT Range)

Electric Batteries with Spiral Fin Heating Elements (AHBAT Range)

Electric Batteries with Spiral Fin Heating Elements (AHBAT Range)

SKU: AHBAT3
  • AHBAT Models
  • with spiral fin heating elements
  • Galvanized Fe plate frame. Optionally, and to order, stainless steel chassis.
  • IP40 damp protection rating
  • New system of connection box with flap opening without removing the lid.
  • Shielded tubular heating elements in AISI 304 stainless steel of Ø10 mm, heating element insulated with electro-melted magnesium oxide and compressed by lamination.
  • Stainless steel AISI 430 fin of Ø26mm outside diameter
  • Crimped M14 zinc steel connectors.

View leaflet

Availability: Delivery time on request

€360.00
€360.00

Benefits

  • Best prices
  • Fast delivery
  • Advice from specialists
Credit card Visa
Credit card Mastercard
iDeal
Bank Transfer
Product Description

Details

General characteristics

  • Galvanized Fe plate frame. Optionally, and to order, stainless steel chassis.
  • IP40 damp protection rating
  • New system of connection box with flap opening without removing the lid.
  • Shielded tubular heating elements in AISI 304 stainless steel of Ø10 mm, heating element insulated with electro-melted magnesium oxide and compressed by lamination.
  • Stainless steel AISI 430 fin of Ø26mm outside diameter
  • Crimped M14 zinc steel connectors.
  • M4 or M6 threaded connector depending on models
  • Application temperature: air output 60 °C
  • Air passage speed recommended for 60ºC:with vair = 3 m/sec
  • Klixon thermostat included with 85ºC protection. Optionally, with 110ºC thermostat
  • Possibility of connecting various modules.
  • 1 or 2 power stages depending on models, both in single and three phase.
  • Heating elements in single voltage ~230 V to enable different connection options.
  • Standard voltage: 3~230 V ³, 3~400 V

To order, we can supply other dimensions, wattages or voltages, as well as different rectangular finned heating
element options.

Options

  • All stainless steel.
  • For Ø8mm tube:
    stainless steel fin →Ø18, Ø24
    iron fin →Ø23
  • For Ø10mm tube:
    stainless steel fin →Ø20, Ø26, Ø30
    iron fin →Ø25, Ø30

Normal applications

  • To heat forced circulation air for heating premises, closed drying circuits in heaters, charge benches, etc. In general, for any application of forced air heating up
    to 200ºC (Maximum temperature with vair = 4 m/sec →200ªC).



Additional Information

Additional Information

Name Electric Batteries with Spiral Fin Heating Elements (AHBAT Range)
Estimated delivery 1-2 weeks
Manufacturer Electricfor
