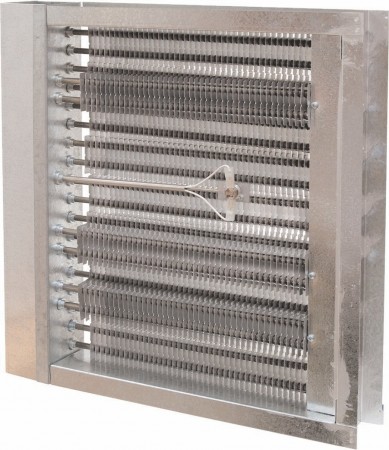

Electric Batteries with Rectangular Fin Heating Elements (ALBAT Range)

Electric Batteries with Rectangular Fin Heating Elements (ALBAT Range)

Electric Batteries with Rectangular Fin Heating Elements (ALBAT Range)

SKU: ALBAT3
  • ALBAT Models
  • with rectangular fin heating elements
  • Galvanized Fe plate frame. Optionally, and on request, stainless steel chassis.
  • Dismountable connection box.
  • Shielded tubular heating elements in AISI 304 stainless steel of Ø8 mm, heating element insulated with electro-melted magnesium oxide and compressed by lamination
  • Aluminised plate fin 25 x 50 mm.
  • Crimped M12 zinc steel connectors.
  • Maximum application temperature: air output 100 °C with air = 2 m/sec

View leaflet

Availability: Delivery time on request

€234.37
€234.37

Benefits

  • Best prices
  • Fast delivery
  • Advice from specialists
Credit card Visa
Credit card Mastercard
iDeal
Bank Transfer
Product Description

Details

General characteristics

  • Galvanized Fe plate frame. Optionally, and on request, stainless steel chassis.
  • Dismountable connection box.
  • Shielded tubular heating elements in AISI 304 stainless steel of Ø8 mm, heating element insulated with electro-melted magnesium oxide and compressed by lamination
  • Aluminised plate fin 25 x 50 mm.
  • Crimped M12 zinc steel connectors.
  • Maximum application temperature: air output 100 °C with air = 2 m/sec
  • Klixon thermostat included with 75ºC protection. Optionally, with 120ºC thermostat
  • Possibility of connecting various modules.
  • 1 or 2 power stages depending on models, both in single and three phase.
  • Heating elements in single voltage ~230 V to enable different connection options.
  • Standard voltage: 3~230 V ³, 3~400 V

To order, we can supply other dimensions, wattages or voltages, as well as different rectangular finned heating
element options.

Options

  • All stainless steel.
  • For Ø8mm tube:
    - fin 25 x 50 mm
    - fin 40 x 70 mm
  • For Ø10mm tube:
    - fin 25 x 50 mm
    - fin 40 x 70 mm

Method of use

To ensure a correct functioning of these elements you must bear in mind the following parameters:

  • Minimum air velocity: 6 m/sec.
  • Maximum air temperature: 40 °C.

Note: The batteries are supplied without being wired, for you to carry out the electrical assembly according to your requirements.

Normal applications

  • To heat forced circulation air for heating premises, closed drying circuits in heaters, charge benches, etc. In general, for any application of forced air heating up to 100ºC.



Additional Information

Additional Information

Estimated delivery 1-2 weeks
Manufacturer Electricfor
