Dungs GasMultiBloc® MB-DLE

    • Please specify the product's option(s).

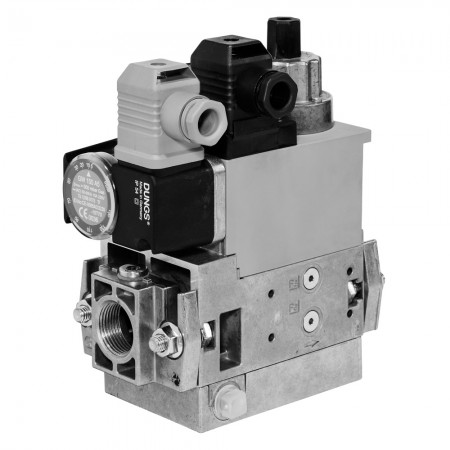

GasMultiBloc® MB-DLE

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • GasMultiBloc® MB-DLE

Dungs GasMultiBloc® MB-DLE

SKU: HTC-MB-DLE

The DUNGS GasMultiBloc® integrates filter, regulator, valves and pressure switches in one compact fitting.


View leaflet

Availability: Delivery time on request

€376.00
€376.00

Benefits

  • Best prices
  • Fast delivery
  • Advice from specialists
Credit card Visa
Credit card Mastercard
iDeal
Bank Transfer
Product Description

Details

  • Dirt trap unit: Fine-mesh sieve
  • One regulator, two main valves and one bypass valve: B07
  • Two valves are fast opening, one valve is slow opening
  • Solenoid valves up to 360 mbar (36 kPa) as per DIN EN 161 Class A Group 2
  • Sensitive setting of output pressure by proportional regulator as per DIN EN 88 Class A Group 2
  • High flow rates with low pressure drop
  • DC solenoid drive interference degree N
  • Main volume restrictor at valve V2, bypass restrictor at valve V3
  • Hydraulic opening delay
  • Flange connections with pipe threads as per ISO 7/1
  • Simple mounting, compact, lightweight

The modular system permits individual solutions by using an internal bypass valve in connection with separately controlled valves, by adding a valve proving system,
mini/maxi pressure switches, pressure limiters, limit switches at valve V2.

Application

The modular system permits individual solutions in gas safety and regulator engineering. Suitable for gases of families 1, 2, 3 and other neutral gaseous media.

Approvals

EC type testing certificate as per:

  • EC-Gas Appliances Regulation
  • EC-Pressure Equipment Directive

Approvals in other important gas consuming countries.

For more information, click here to take a look at the product brochure.

Additional Information

Additional Information

Manufacturer Dungs
Max. Operating Pressure 360 mbar
Pressure Switch GW150A5
Estimated delivery 1 week
Country of Manufacture Germany
