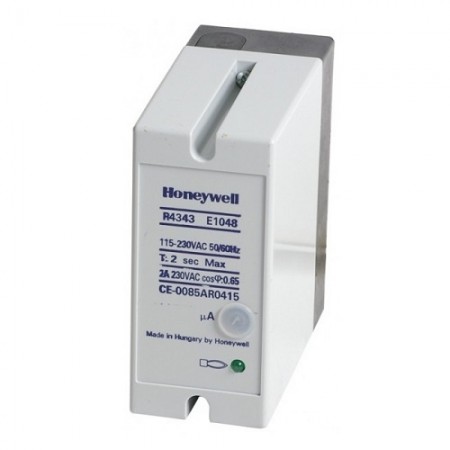

Honeywell Flame Relay R4343E1014

Honeywell R4343E1014

Honeywell Flame Relay R4343E1014

SKU: R4343E1014
  • Flame current meter jack socket permits monitoring of flame signal strength.
  • Plug-in mounts onto a subbase for surface mounting. (Housing meets IP40)

View leaflet

Availability: Delivery time on request



  • Best prices
  • Fast delivery
  • Advice from specialists
Credit card Visa
Credit card Mastercard
Bank Transfer
Product Description


The R4343D/E series is a flame switch for intermittent operatio to indicate presence or absence of a flame and to be applied in commercial or industrial burner installations. light.

Flame current meter jack socket on the front permits monitoring of flame signal strength, by using any appropriate microampere meter (0-10uA minimum scale).
Plug-in mounts onto a sub base (included) for surface mounting.
Providing an indication of absence or presence of a flame in intermittent industrial oil/gas burner applications by an open or closed relay contact.
Approvals: CE approved according EN298 (for intermittent operatio)
Protection class: IP40
Ambient temperature: -10...60C
Maximum humidity: 90%rh
R4343D models are for use with rectification type flame sensors, such as flame rods and C7012A/G UV sensors.
R4343E models are for use with Honeywell UV sensor models C7027, C7035 and C7044.
Note: The R4343D models will operate also with the "Satronic" IRD820/1020 range of infrared sensors. Note that this combination is NOT CE approved for use on installations that fall under the GAD (Gas Appliances Directive).
Outputs: 1xDPDT
Operatio: Intermit.

UV flame detectors
Flame failure response time: <1s
Flame detector: UV
Supply voltage: 220..240 Vac

Additional Information

Additional Information

GTIN / EAN 5023220801610
Estimated delivery 2-3 weeks
Manufacturer Honeywell
Country of Manufacture Germany
